Console Backup

First of Console Backup can be done, the domain must be connected. The button Condole Backup Now... provide backup of just one selected device in device list, so your device must be added to the domain first.

By pressing the button Condole Backup Now... can you backup switche or router device through serial communication configutation cable. Correct device setting, specially IOS type and login account, if different from domain setting.

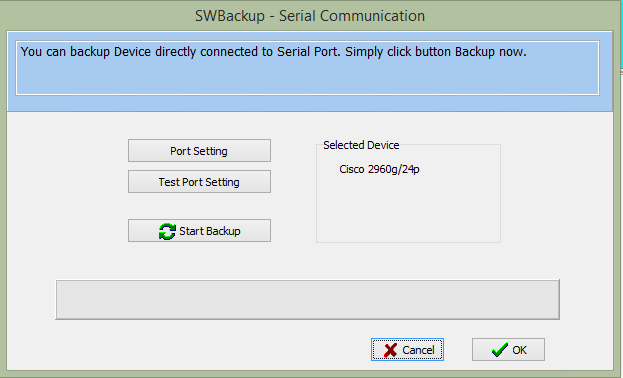

When you press the Condole Backup Now... button, the confirmation dialog is shown.

If necessary, you can state Port setting - serial port number, transmission speed, flow setting asw:

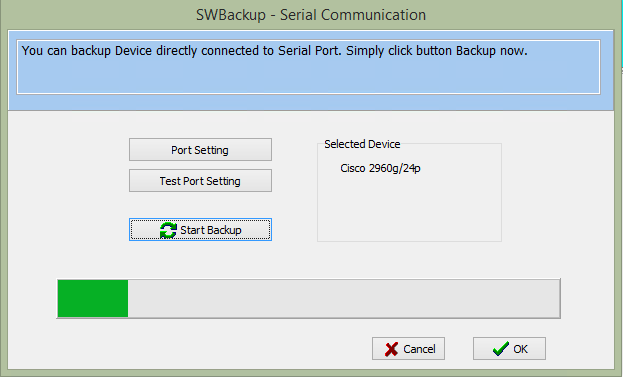

By pressing Start Backup button, the backup process is started, as you can see on the progress bar.

When backup completed, the tab Device backups is shown.
