Edit Domain Options

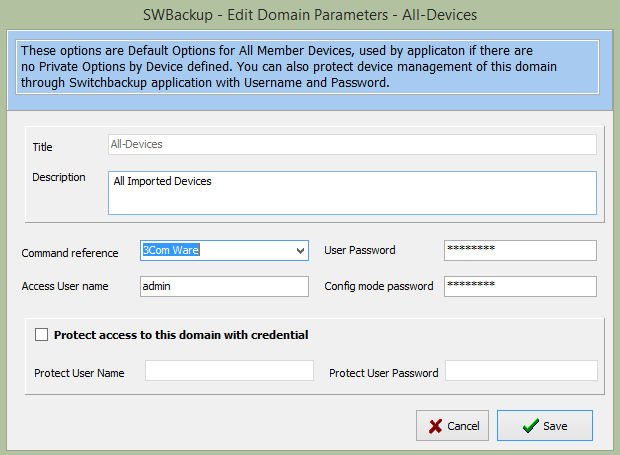

When You press Edit Domain Options... button, the dialog domain setting is shown.
- Title - domain name, which could not be changed
- Description - here You can edit domain description
- Command reference - depend on IOS of the switch or router device, You can select 3Com Ware for 3 Com & Huawei devices or Cisco like for Cisco devices
- Access User Name - user name application will use to connect to device in that domain, if is not overriden in Device setting
- User Password - password application will use to connect to device in that domain, if is not overriden in Device setting
- Config mode password - password for privileged use (enable password in cisco), or configuration password, which will be used for all devices of current domain, if is not overriden in Device setting
- Protect access to this domain with credential - when checked, user name and password must be inserted by technician, before connecting that domain with SwitchBackup. This account is stored only in SwitchBackup database and has no influence on device itself.
