Device Backup Differences
You can use the tab Device Backup Differences to identify
- changes of configuration of one switch or router device in the time period
- differences in the configuration files of different switches or routers

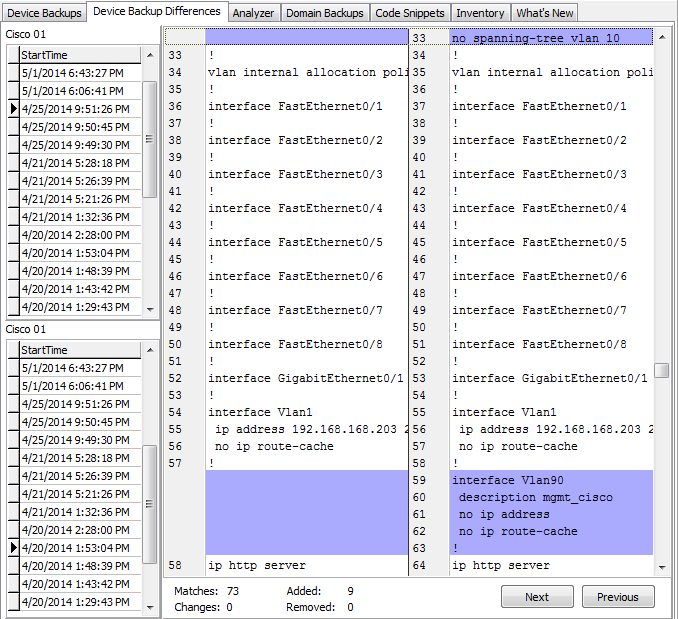

Changes of configuration of one switch or router device

- Select a device in the list on left pane.
- In the upper list of the middle pane select a fist date, in the lower select the second one.
- Identified differences will be highlighted and in the bottom pane you can see a summary of detected differences.

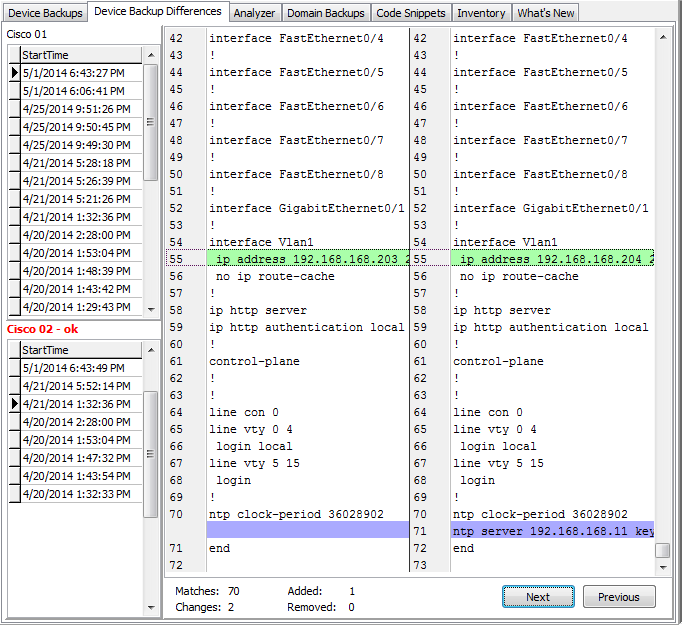

Differences in the configuration files of different switches or routers
- Select the first device in the list on left pane.

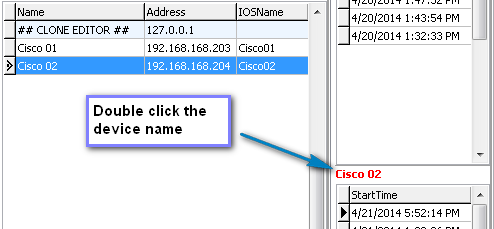

- Fix the device by doubleclick on his name in the lower part of middle pain..
- Select the second device in the list on left pane.
- Select desired time of backups of both devices, identified differency will be highlited.
- You can release the device fixed on the lower panel by next doubleclick on its hostname.
